Price:
18000,00 ৳

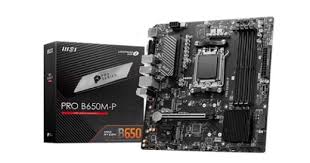

MSI PRO B650M-P DDR5 MOTHERBOARD
Key Features
Micro-ATX Form Factor
AMD B650 Chipset
AM5 Socket
4 x Dual-Channel DDR5
| Processor | |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Mainboard | |
| Chipset | AMD B650 |
| Memory | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Storage | |
| Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| Graphics | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz |
| Audio & Microphone | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Networking & Connectivity | |
| LAN | Realtek 8125BG 2.5G LAN |
| Technical Info | |
| BIOS | Flash BIOS Button |
| Ports | |
| Slots | 4 DIMMs |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| External I/O Ports | USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| HDMI | 1x HDMI |
| Physical Specification | |
| Form Factor | mATX |
| Dimension | 243.84mmx243.84mm |
| Warranty Information | |
| Warranty | 03 YEARS |
Description
MSI PRO B650M-P MOTHERBOARD
The MSI PRO B650M-P AM5 Micro-ATX Motherboard. Sporting a smaller form factor, the PRO B650M-P offers robust connectivity without compromising performance, making this ideal for new and seasoned builders alike. With an AM5 socket, you can support a wide range of AMD Ryzen 7000 Series processors. Four dual-channel DDR5 RAM slots allow you to install up to 128GB of memory so you can scale your multitasking performance to your liking. Four SATA and two M.2 interfaces allow you to create an array of storage drives for your games, media, and other important applications. Install graphics and utility cards with one PCIe 4.0 x16, one PCIe 4.0 x16 (in x4 mode), and one PCIe 3.0 x1 slot. The back panel provides you with ample connectivity options, giving you four USB-A 3.2 Gen 1 and four USB-A 3.2 Gen 2 ports, giving you data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as your keyboard and mouse. Bluetooth 5.2 technology provides support for wireless devices such as headphones and controllers. When combined with Ryzen processors with integrated graphics, the DisplayPort and HDMI video outputs can provide you with enhanced visual capabilities suitable for light workloads and troubleshooting. Connect to your network via Wi-Fi 6E (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet port for a reliable wired connection.
| Brands | MSI |
