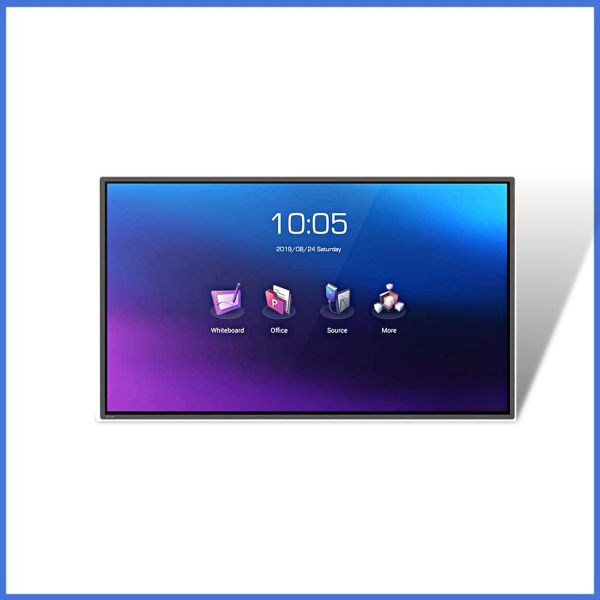

Horion 86M5APro All in one Interactive Flat Panel

Display

Model

86M5APro

Size

85.6"

Backlight type

D-LED

Display type

IPS

Resolution

3840*2160

Brightness

400cd/m2

Contrast ratio

100,000:1

Touch points

20 touch

Response time

8ms

Pixel pitch

0.4935mm*0.4935mm

Refreshing frequency

60Hz

Viewing angle

178°(H) / 178°(V)

Color gamut (x% NTSC)

72%

View area

1895.04mm*1065.96mm

Display colors

1.07B(10bit)

Life time

50,000 hrs

System

Solution

MT9950

Operation system

Android 11.0

CPU Architecture

ARM A73

CPU Working Frequency

1.8GHz

CPU Core

Quad Core

GPU

Mali-G52

RAM

8GB

ROM

64GB

Power

Voltage

100 V ~ 240 V/AC, 50/60 Hz

Power consumption without OPS

380W

OPS Power

18V(DC)/5A

Power consumption in standby mode

<0.5W

Power AC input

*1

Camera

Pixel

13M

FOV

DIAGONAL 85.4±3°

Focus form

Fixed focus

Array Mic

MIC Category

8pcs omnidirectional silicon wheat

Pick-up Distance

8m

Pick-up Angle

180°

Function

Audio Output Power

15W * 2

WIFI

Support

NFC

Support

Bluetooth

Support Bluetooth5.0

Interface

HDMI-IN

*2

DP-IN

*1

VGA-IN

*1

Audio-IN

*1

USB 2.0

*1

USB 3.0

*4

Touch-USB

*1

MIC-IN

*1

SPDIF-OUT

*1

HDMI-OUT

*1

Audio-OUT

*1

Type-C

*1

RS232 In

*1

Environment

Working Temperature

0℃ ~ 40℃

Storage Temperature

-10℃ ~ 60℃

Working Humidity

20% ~ 80%

Storage Humidity

10% ~ 80%

Work Altitude

≤5000m

The longest service time (Hour*Day)

18Hours*7days

Structure

Net Weight

50kg±1.5kg

Gross Weight

65kg±1.5kg

Product Size W*D*H）

1722.41mm*87.08mm*1022.15mm

Package Size W*D*H）

1900mm*225mm*1125mm

VESA

4*M8 Screw Hole 600mm*400mm

Housing Material Surface Frame /Back Cover）

Aluminum/Sheet Metal

Housing Color Surface Frame /Back Cover）

Gray (White)/Black

Accessories

Pen

*2

Remote Control

*1

Expansion Screw

*8

User Manual

*1

Certificate of quality/Warranty card

*1

HDMI Cable

*1

Touch Cable

*1

Power Cable

*1
