Price:
8800,00 ৳

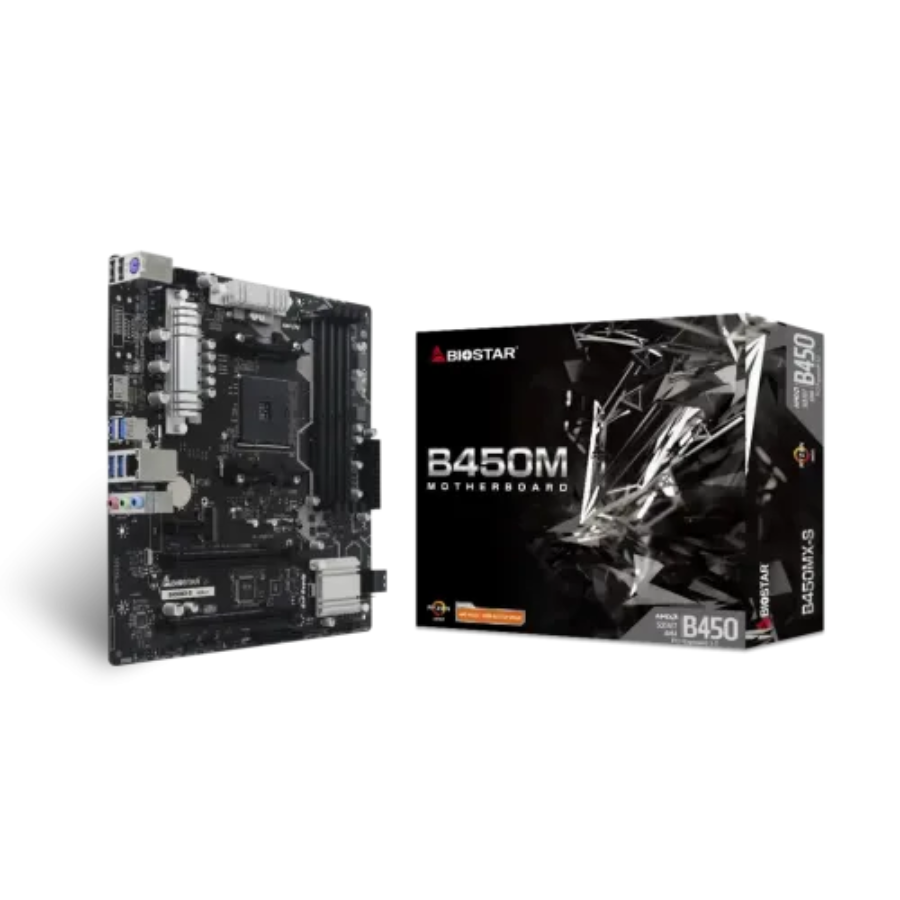

BIOSTAR AMD SOCKET AM4 DDR4 GAMING MOTHERBOARD B450MX-S (RYZEN APU/CPU, DDR4)
Key Features
Model: B450MX-S
Supported CPU: Socket AM4 supports AMD Ryzen APU / Ryzen CPU
Supported RAM: 4 x DIMM, DDR4 4000(OC) MHz
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: 1 x M.2 Slot, Realtek Gigabit LAN
Specification
Basic Information | |
| Supported CPU | Socket AM4 supports AMD Ryzen APU / Ryzen CPU |
| Chipset | AMD B450 |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L ) |
| Audio | ALC887 / 897 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
Expansion Slots | |
| PCI | AMD Processors 1 x PCIe 3.0 x16 Slot: Supports PCIe 3.0 x16 mode with AMD Ryzen™ processors. Supports PCIe 3.0 x8 mode AMD Ryzen™ with Radeon Vega Graphics processors. AMD Chipset 1 x PCIe 2.0 x16 Slot (x4 mode) 1 x PCIe 2.0 x1 Slot |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
Memory | |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667 Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) |
| Maximum Memory | Up to 128GB |
Graphics | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
Connector & Ports | |
| HDMI | 1 x HDMI Port |
| USB (s) | 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6Gb/s) SSD * M.2 (M Key) Socket : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU is 16Gb/s. |
| Audio | 3 x Audio Jack |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x S/PDIF out Connector 1 x COM Port Header |
Others | |
| Bundled Software | BullGuard |
Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
Description
BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
The BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard is a high-quality motherboard designed for enthusiasts and overclockers seeking a robust platform for their AMD Ryzen APU or CPU. Featuring the AMD B450 chipset, this motherboard offers exceptional low-level control and delivers impressive graphics card bandwidth, making it an excellent choice for gamers and power users. The motherboard is compatible with a wide range of AMD Ryzen processors, allowing users to build a system tailored to their performance needs. The motherboard utilizes the AMD B450 chipset, known for its high-end capabilities, including overclocking support and reliable performance. Supports 4-DIMM DDR4 up to 128 GB Memory: With four DDR4 DIMM slots, this motherboard supports a maximum of 128 GB of RAM, ensuring smooth multitasking and excellent system performance for various tasks, from gaming to content creation. Featuring Realtek Gigabit LAN, the motherboard provides a stable and high-speed Ethernet connection for online gaming and network-intensive tasks. Equipped with USB 3.2 Gen1 ports, this motherboard allows for fast data transfer speeds, making it easy to connect external devices and peripherals with rapid data access. Supports M.2 (32Gb/s): The M.2 slot with a 32Gb/s data transfer rate ensures lightning-fast storage options, supporting high-speed NVMe SSDs for rapid system boot times and data access. The motherboard includes an HDMI port capable of delivering 4K resolution, providing crystal-clear visuals and making it ideal for high-definition multimedia and gaming experiences. The BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard offers a feature-rich and reliable foundation for your AMD Ryzen-based system, catering to both performance and gaming enthusiasts who demand high-level control and exceptional graphics capabilities. Whether you're building a gaming rig or a content creation workstation, this motherboard is a solid choice to consider.
