Price:
6200,00 ৳

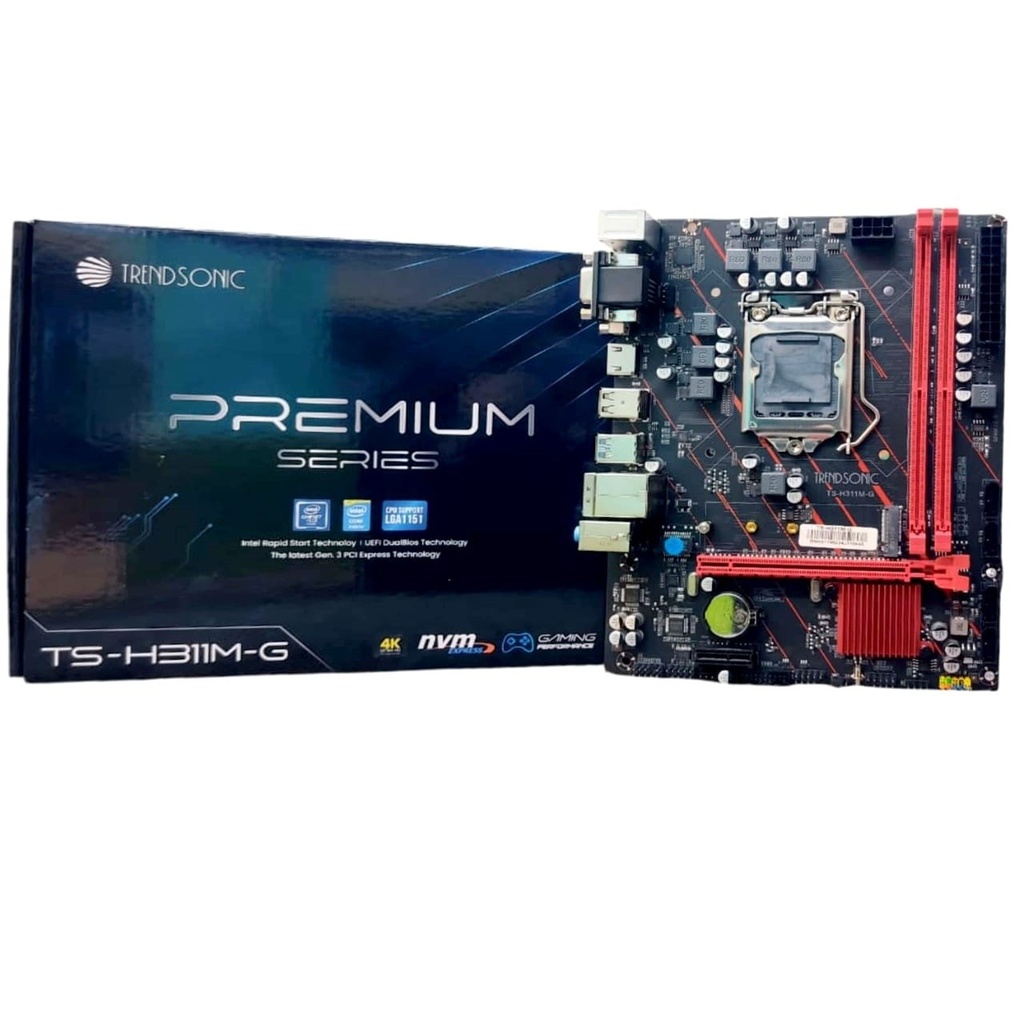

TRENDSONIC TS-H311M-G Computer Mother Board
Key Features
Model: TS-H311M-G
Support Intel LGA1151 6th/7th/8th/9th Gen
RAM 2 x DDR-4 2666/2400/2133MHz Support 32GB
1xM.2 2280 NVME PCIE X4 2.0
2xUSB3.0, 2xUSB2.0, 2 xUSB2.0 PIN,1 xUSB3.0 PIN
Specification
| Brand | TRENDSONIC |
|---|---|
| Model | TS-H311M-G |
| Processor Type | Intel Core i3, Intel Core i5, Intel Core i7 |
| Generation | 6th Gen, 7th Gen, 8th Gen, 9th Gen |
| Color | Black |
| Warranty | 03 years warranty |
| Processors Support Type | Intel 6th/7th/8th/9th Gen, Intel Dual Core/ Core i3/ Core i5/ Core i7/ |
| Chipset | Intel 100 Series Chipset |
| CPU Socket | Support Intel LGA1151 Platform Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support Dual Channels DDR4 2666/2400/2133/ 1866MHz(Decided By CPU)，Max Support32GB |
| Storage Interface | 4xSATA 3.0 6Gbps |
| Expansion Slots | 1xPCI Express3.0 x16,1xPCI Express 2.0 x1,2xPCI |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 2.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 240*180MM M-ATX |
| Rear Panel Interface | 2xUSB3.0, 2xUSB2.0, 1xVGA Interface,1xHDMI2.0 Interface,1xCOM Interface,1x Network Card Interface, 1×3-Hole Audio Interface,1xPS/2 Interface,1xJVGA PIN |
| Front Panel Interface | 2 xUSB2.0 PIN,1 xUSB3.0 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN,1 x TPM PIN, 1 x SPEAK PIN,1 x Power On/Restart PIN |
| Support System | Windows7 Windows10 Windows11（Restore AC Power Loss/Scheduled Power On/Wake-on-LAN/IPV4/IPV6 PXE Boot） |
| BIOS | AMI UEFI BIOS |
| Packing List | 1 x Motherboard,1x SATA Cable,1xWarranty Card,1xIO PANEL |
| Brands | Transcend |
