Price:
10,200.00 ৳

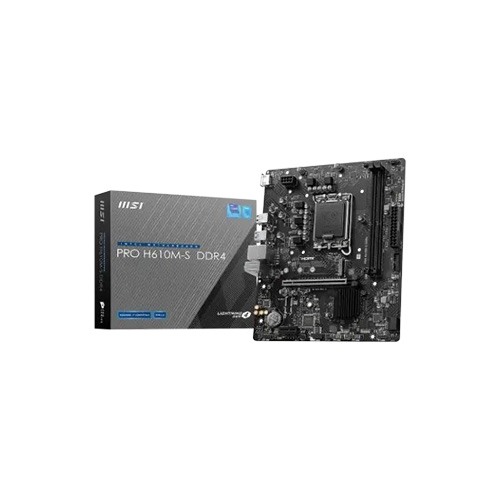

MSI PRO H610M-S DDR4 Intel Motherboard
Key Features:
Supports 12th Gen Intel Core, Pentium Gold and Celeron processors
LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use.
Specification
| GPU Specification | |
| Multi Display Capability | 12 |
| Motherboard Specification | |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Socket | 1700 |
| Memory Specification | |
| Memory Type | DDR4 |
| Max Number of Channels | Dual |
| Memory Capacity | 64 |
| Memory Slots | 2 |
| Supports | |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Connectors | |
| LAN | 1x Intel I219V 1Gbps LAN controller |
| USB | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| HDMI | 1 |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Ports & Slots | |
| Slots | M.2 SLOT 1 |
| Ports | USB 3.2 Ports (Front) 2(Gen 1, Type A) USB 3.2 Ports (Rear) 2(Gen 1, Type A) USB 2.0 Ports (Front) 2 USB 2.0 Ports (Rear) 4 Audio Ports (REAR) Realtek ALC892/ ALC897 Codec |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector |
| Expansion Slots | PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Physical Specification | |
| Dimensions (W x D x H) | 304*243mm |
| Warranty Information | |
| Warranty | 03 year |
| Brands | MSI |
