Key Features
MPN: HN308W-FX506HE

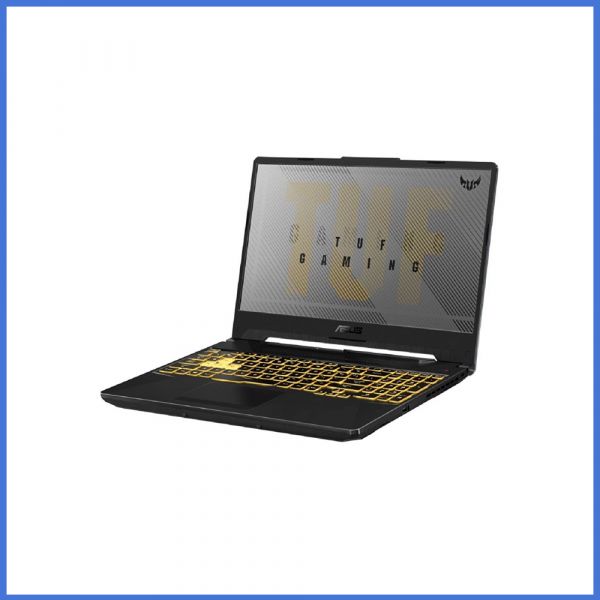

Model: TUF GAMING F15 FX506HE
Intel Core i5-11400H Processor (12M Cache, 2.70 GHz up to 4.50 GHz)
8GB DDR4 3200MHz RAM
512GB M.2 NVME PCIE 3.0 SSD
NVIDIA GeForce RTX3050Ti 4GB Graphics
| Processor | |
| Processor Brand | Intel |
| Processor Model | Core i5-11400H |
| Generation | 11th Gen |
| Processor Frequency | 2.70 GHz up to 4.50 GHz |
| Processor Core | 6 |
| Processor Thread | 12 |
| CPU Cache | 12MB |
| Display | |
| Display Size | 15.6-inch |
| Display Type | IPS |
| Display Resolution | FHD (1920 x 1080) |
| Touch Screen | No |
| Refresh Rate | 144Hz |
| Display Features | 16:9, 250 Brightness, 1000:1 Contrast, NTSC 45%, SRGB 62.5%, Adobe 47.34%, Anti glare Display |
| Memory | |
| RAM | 8GB |
| RAM Type | DDR4 |
| Removable | Yes |
| Bus Speed | 3200MHz |
| Total RAM Slot | 2 |
| Max RAM Capacity | Up to 32GB |
| Storage | |
| Storage Type | M.2 NVME PCIE 3.0 SSD |
| Storage Capacity | 512GB |
| Extra M.2 Slot | Yes |
| Graphics | |
| Graphics Model | NVIDIA GeForce RTX 3050 Ti |
| Graphics Memory | 4GB |
| Graphics Type | GDDR6 |
| Keyboard & TouchPad | |
| Keyboard Type | Illuminated Keyboard |
| Keyboard Features | RGB |
| TouchPad | Yes |
| Camera & Audio | |
| WebCam | HD |
| Speaker | 2x 2W |
| Microphone | Yes |
| Audio Features | DTS software |
| Ports & Slots | |
| Optical Drive | N/A |
| Card Reader | N/A |
| HDMI Port | 1x HDMI 2.0b |
| USB 3 Port | 3x USB 3.2 Gen 1 Type-A |
| USB Type-C / Thunderbolt Port | 1x Thunderbolt 4 support DisplayPort |
| Headphone & Microphone Port | 1x 3.5mm Combo Audio Jack |
| Network & Connectivity | |
| LAN | 1x RJ45 LAN port 10/100/1000 Mbps |
| WiFi | Wi-Fi 6(802.11ax) |
| Bluetooth | Bluetooth 5.2 |
| Security | |
| Fingerprint Sensor | N/A |
| Security Locker Slot | Kensington Security Slot |
| Security Chip | Firmware TPM |
| Software | |
| Operating System | Windows 10 Home |
| Power | |
| Battery Type | 3-cell Li-ion |
| Battery Capacity | 48WHrs, 3S1P |
| Adapter Type | ø6.0, 180W AC Adapter, Output: 20V DC, 9A, 180W, Input: 100~240V AC, 50/60Hz universal |
| Physical Specification | |
| Color | Eclipse Gray |
| Dimensions | 35.9 x 25.6 x 2.28 ~ 2.45 cm |
| Weight | 2.30 Kg |
| Warranty | |
| Warranty Details | 2 years International Limited Warranty (Battery 1 year) |
The ASUS TUF Gaming F15 FX506HE Gaming Laptop comes with Intel Core i5-11400H Processor (12M Cache, 2.70 GHz up to 4.50 GHz), 8GB DDR4 3200MHz RAM, 512GB M.2 NVME PCI-E 3.0 SSD. It has been integrated with NVIDIA GeForce RTX 3050 Ti 4GB GDDR6 Laptop Graphics and has a 15.6-inch FHD (1920 x 1080) 16:9, 144Hz, Value IPS-level, 250 Brightness, 1000:1 Contrast, NTSC 45%, SRGB 62.5%, Adobe 47.34%, Anti-glare Display. It runs on the Windows 10 Home Operating System. This gaming laptop features 48WHrs, 3S1P, 3-cell Li-ion Battery. It has a 720P HD camera. For connectivity options, It has been loaded with 10/100/1000 Mbps LAN, Wi-Fi 6(802.11ax), and Bluetooth 5.2. This laptop comes with an RGB Illuminated keyboard. This laptop also has 02 years International Limited Warranty (Battery 1 year).
| Brands | Asus |
