Price:
12,700.00 ৳

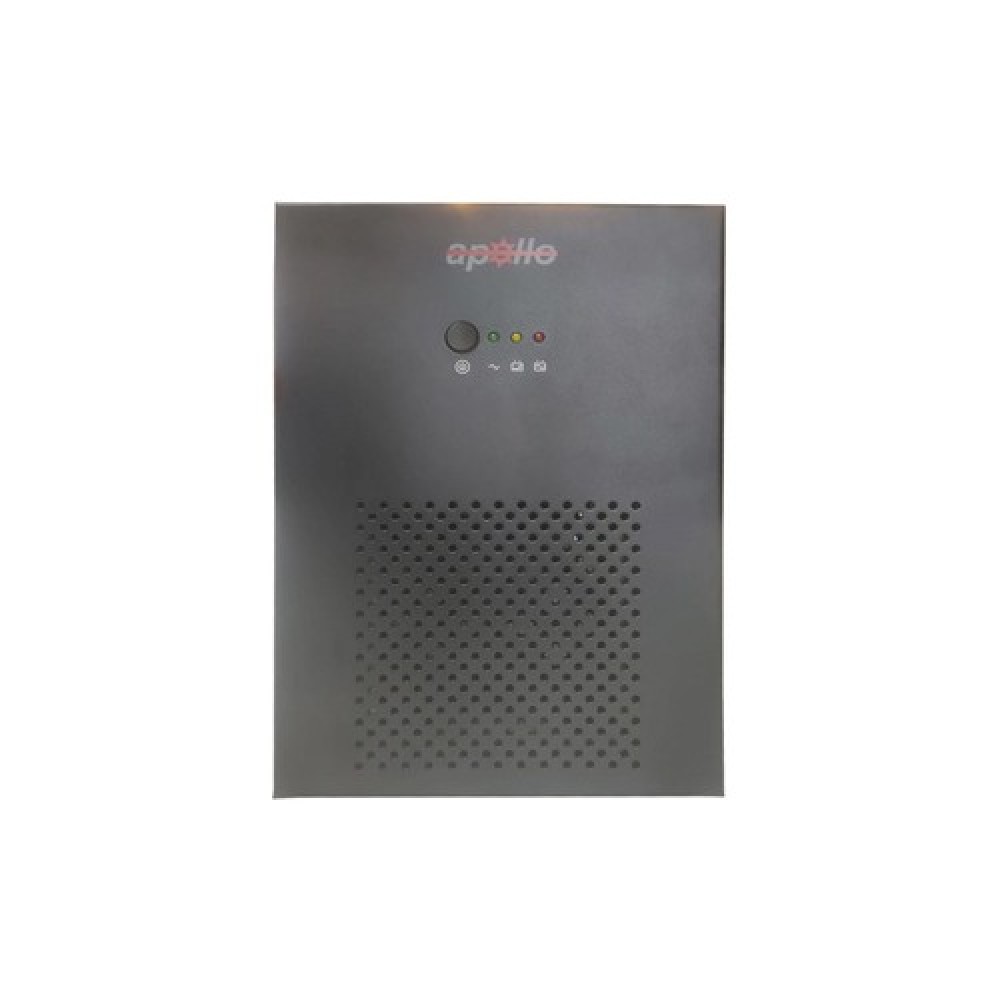

APOLLO 2000VA LINE INTERACTIVE UPS 1200E
Key Features
Model: 2000VA
Input Voltage: 220VAC ± 20~35% (Customizable)
Battery Types: Lead-Acid maintenance-free
Load Capacity: 2000VA, Frequency: 50 Hz or 60Hz ± 1Hz
Backup Time: 15~30 Minutes Depending on Load Connected
Specification
Main Feature | |
| Capacity | 2000VA |
| Load Capacity | 900W |
| Input Voltage | 220VAC ± 20~35% (Customizable) |
| Output Voltage | 220VAC ± 3~8% |
| Frequency (Battery Mode) | 50 Hz or 60Hz ± 1Hz |
| Noise Level | EMI/RFI full time suppression |
| Battery | Types: Lead-Acid maintenance-free DC Bus: 12V/7.2A Number: 4 PCS Recharge Time: Typically 8 hours to 90% Charged Backup Time: 15~30 Minutes Depending on load connected (Long Backup Optional) |
| Alarm | Beeping Alarm |
| Indications | AC Mode: Green lighting Battery Mode: Red lighting Over Load: Yellow lighting |
Input Features | |
| Frequency | 50Hz or 60Hz |
| Voltage Range | 220VAC ± 20~35% (Customizable) |
Output Features | |
| Backup Time | 15~30 Minutes Depending on load connected (Long Backup Optional) |
| Voltage Range | 220VAC ± 3~8% |
| Transfer Time | 2ms |
Physical Specification | |
| Dimension | 165x228x483mm |
Manufacture Warranty | |
| Warranty | 1 year |
Description
Apollo 2000VA Offline UPS
The Apollo 2000VA Offline UPS is a dependable power backup solution that delivers consistent and uninterrupted power to sensitive devices including computers, PABX systems, intercoms, printers, and fax machines. It is compatible with different locations and runs at a frequency of 50Hz or 60Hz with an input voltage of 220VAC. The Apollo 2000VA Offline UPS maintains a constant voltage at 220VAC while producing a 2000VA output that simulates a sinewave via PWM. It quickly transitions to battery mode during power outages with a transfer time of under 2 ms, providing a crucial backup time of 15 to 30 minutes, depending on the load. The Apollo UPS has four maintenance-free lead-acid batteries with a strong 12V/7.2A DC bus. The batteries take about 8 hours to fully recharge to 90% of their capacity. With surge protection that satisfies IEEE S87 Cat. A requirement, its sophisticated protection systems prevent over- or under-voltage, overloads, short circuits, and low battery circumstances. Clean power delivery is ensured by EMI/RFI filtering-based noise suppression. The Apollo 2000VA Offline UPS is a tiny form factor that measures 165x228x483mm. The UPS has distinct LED indicators for power status (AC Normal, Backup, and Fault) and runs at a noise level of less than 35 dBA. Audible alerts for overload, low battery, and on-battery operation are among the extra features. Software control is possible through optional DB9 and USB communication interfaces, and Apollo 2000VA Offline UPS cold start functionality allows startup without utility power. With its ability to function effectively in temperatures ranging from 0 to 40°C and non-condensing humidity levels of 0 to 90%, this robust backup power option can be utilized for a wide range of applications.
